trackmaps

  • Current trackmap

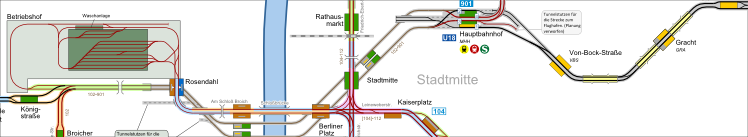

    Complete track network of the Ruhrbahn in Mülheim and the STOAG in Oberhausen.

    show trackmap trackmap as pdf trackmap as svg key

  • share

  • Copyright

    These drawings are protected by copyright. A further use is possible by application of the Creative-Commons-Lizenz by-nc-sa.

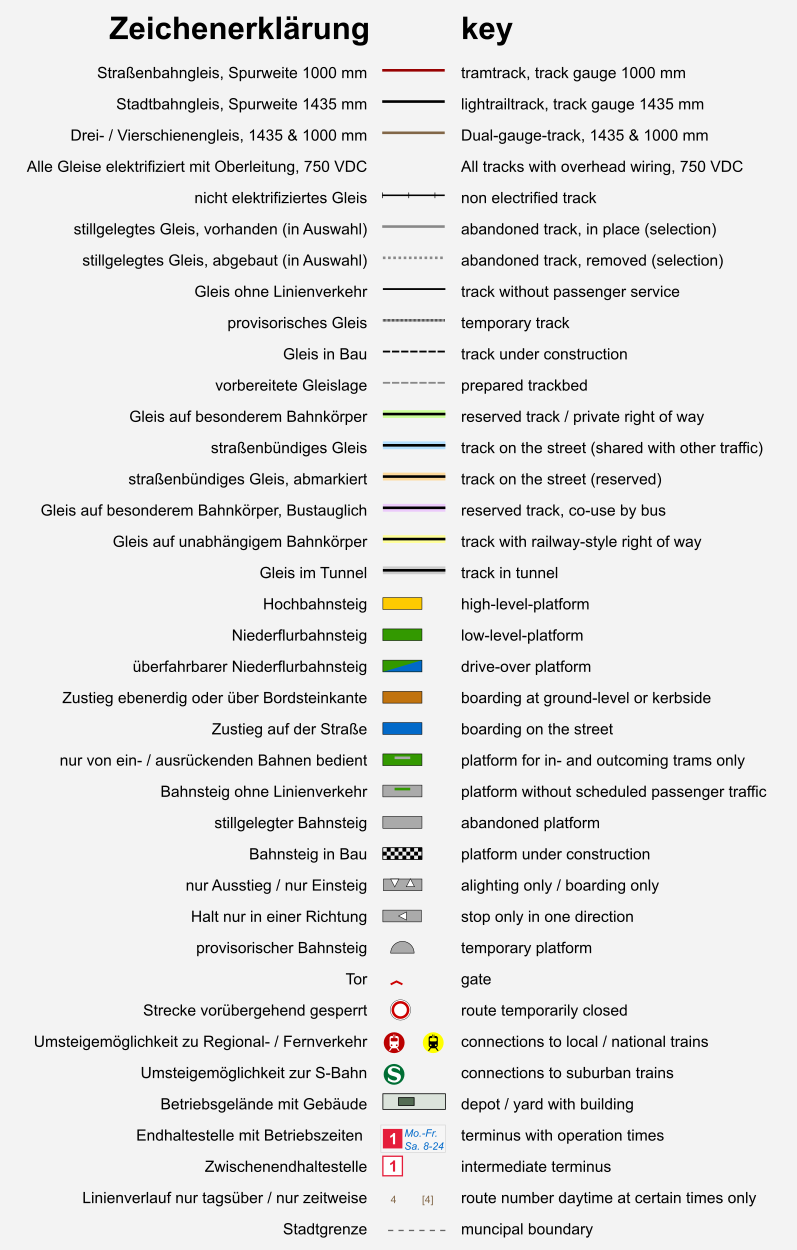

  • Ausführliche Definitionen der im Gleisplan verwendeten Symbole und Darstellungen.

    • additional maps

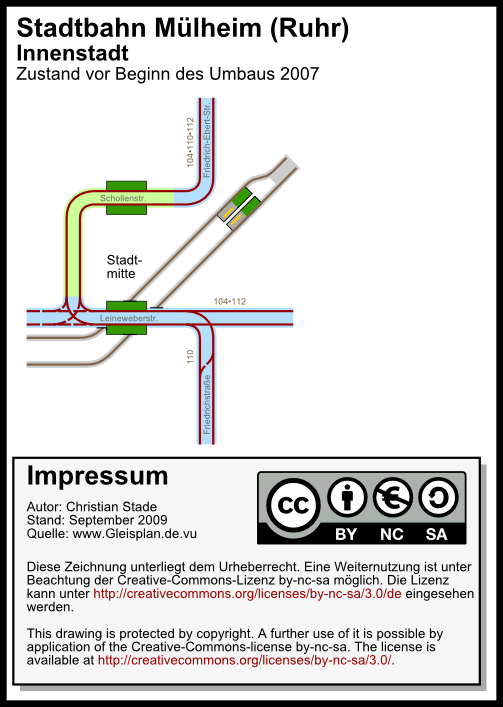

  • Mülheim City Centre

    Situation before the start of the coversion works.
    trackmap

    • current and upcoming projects

      Short-time construction works with no effect on the trackmap are not listed here.

    • Hauptfriedhof

      Umbau der Haltestelle mit einem Niederflur-Seitenbahnsteig und einer zweigleisigen Kehranlage.
      geplant | proposed inauguration: Anfang 2026
      drawn on the trackmap

    • Linie 105

      Neubaustrecke von Oberhausen Neue Mitte nach Essen Unterstraße.
      Vorplanung | proposed inauguration: noch offen
      outlined on the trackmap

    profile

    network data tramway MH/OB
    inauguration:
    		09.07.1897
    track gauge:
    		1000 mm
    overhead wiring:
    		750 VDC
    operator:
    		Ruhrbahn
    :
    		Stadtwerke Oberhausen
    network, total length:
    		30 km
    lines:
    		4
    network data tramway DU (line 901)
    inauguration:
    		15.06.1911
    track gauge:
    		1435 mm
    partly four-rail-track with tramway Mülheim
    overhead wiring:
    		750 VDC
    operator:
    		Duisburger Verkehrsgesellschaft
    network data light rail (U18)
    inauguration:
    		15.12.1898
    track gauge:
    		1435 mm
    overhead wiring:
    		750 VDC
    operator:
    		EVAG (Essen)
    network length:
    		5,5 km
    rolling stock tramway (2012)
    trams:
    		30
    historic trams:
    		5
    units needed for regular service:
    		25
    partly estimated

    last updates

    • 07.06.2024
      Mülheim: Tail track Evangelisches Krankenhaus finished.
    • 15.10.2023
      Plans for the reconstruction of Hauptfriedhof updated.
    • 06.08.2023
      Kahlenberg line Wertgasse - Oppspring mothballed.
    • 27.01.2023
      Proposed tailtrack at Wertgasse added.
    • 29.11.2020
      Reconstruction of Kaiserplatz stop added.
    • 27.05.2018
      Tram: Reconstruction of Oppspring stop added.

    Found a mistake?

    You've found a mistake in the map or you know a current change? Here you can directly advise it. This will be considered in the next update.

    Updates of the maps will be done about every month. You will get a message when the update is done.

    contact form

    via e-mail:

    gleisplan@web.de
